NIC Teaming, or Network Interface Card Teaming, is a feature in Windows Server that combines multiple network adapters into a single logical interface.

It enhances network performance, provides redundancy, and ensures high availability by aggregating bandwidth and enabling failover protection.

Below we will see step by step how to set up NIC Teaming in Windows Server.


In the Server Manger navigate to Local Server and click on Disabled under NIC Teaming.


The NIC Teaming windows appears. Here select the desired server and its NICs you want to create a new team for. Below I want to create a new Team by using the Ethernet0 and Ethernet1 network adapter.


Enter a name for the new team.

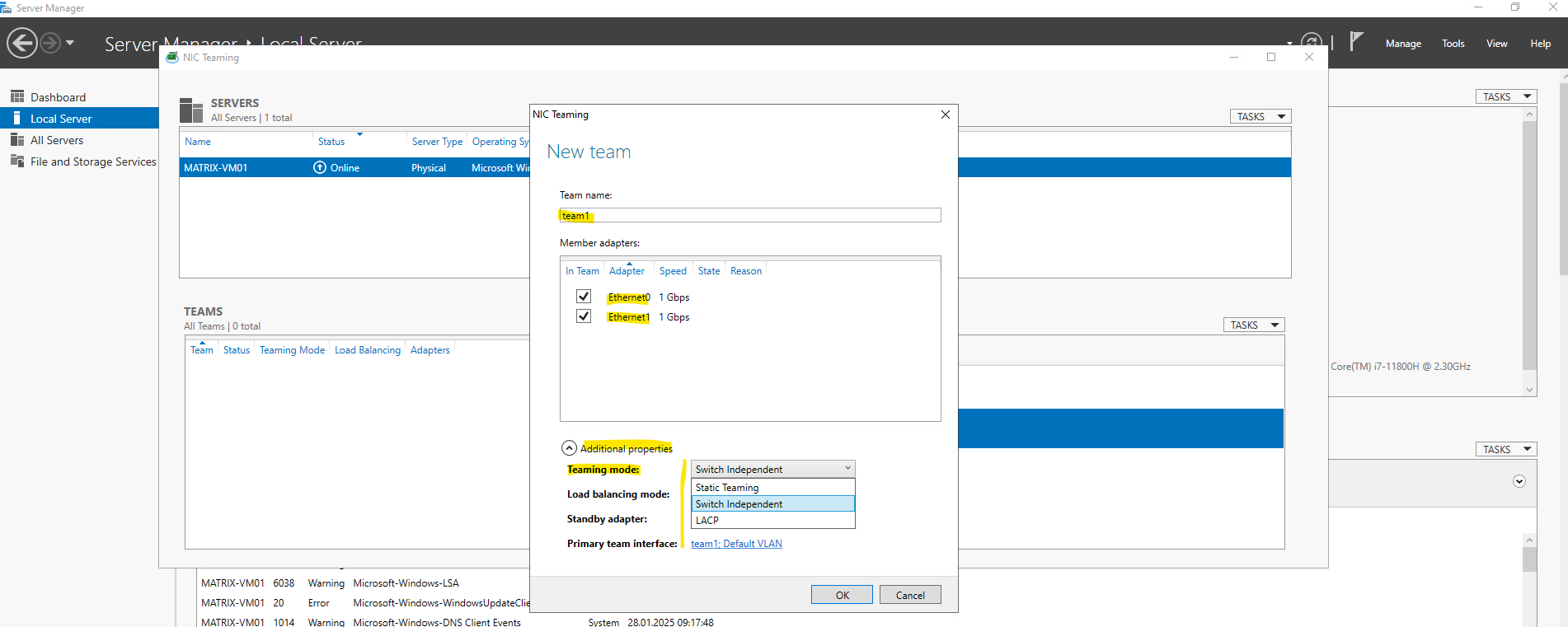

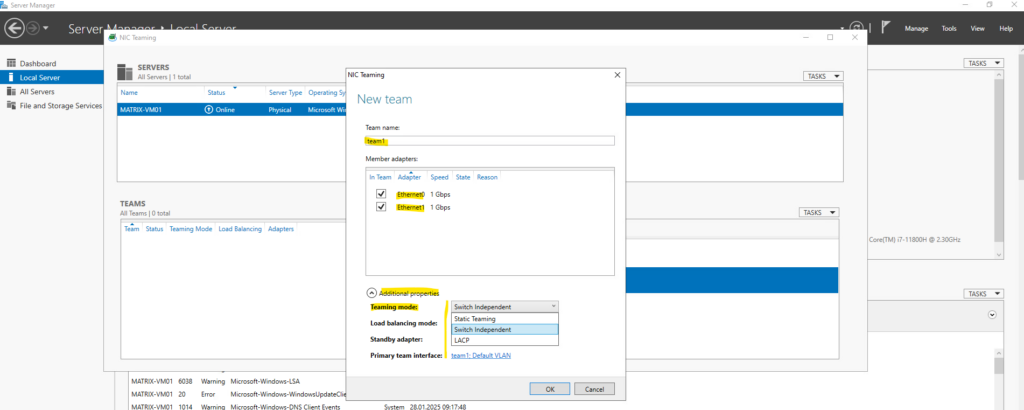

Expand Additional properties. Here we can set the teaming mode, load balancing mode and standby adapter.

For the Teaming Mode I will select Switch Independent. This is by the way also the only teaming mode which is supported in a virtual machine which I will use here.

This mode allows the server to manage the teaming of network adapters without requiring any special configuration or support from the network switch.

Each NIC in the team operates independently and can be connected to different or the same switches, making it a flexible and resilient option for network redundancy and load balancing. This works with any network switch, even unmanaged ones.

Further just in this mode you can configure a active/passive configuration, one NIC (Active) handles all network traffic during normal operation, the other NIC(s) (Passive) remain in standby and only become active if the primary NIC fails.


Static Teaming is a teaming mode that requires manual configuration on both the server and the network switch.

Unlike Switch Independent mode, Static Teaming relies on the switch to handle the aggregation of the network adapters.

Static Teaming is a switch-dependent mode where the network adapters in the team are manually configured to work together. The switch must be explicitly configured to recognize the team and aggregate the links. This mode does not use dynamic protocols like Link Aggregation Control Protocol (LACP) but instead relies on static configuration.

LACP (Link Aggregation Control Protocol) mode is a switch-dependent teaming mode that uses the IEEE 802.3ad standard to dynamically aggregate multiple network adapters into a single logical link.

LACP is a widely used protocol for link aggregation, providing both bandwidth aggregation and failover capabilities.



For the Load balancing mode I will select Address Hash. When configuring for a virtual machine, the only valid load balancing algorithm here is Address Hash.

Dynamic is usually the highest-performing load-balancing mode. The Dynamic algorithm combines the best aspects of the two algorithms to create an effective load balancing mechanism.

Hyper-V Port mode is a specialized load balancing mode in Windows Server NIC Teaming, tailored for Hyper-V environments. You can use this mode for Windows servers where the Hyper-V role is installed on. Each VM’s virtual network adapter (vNIC) is mapped to a specific physical NIC in the team, ensuring that traffic from different VMs is distributed across the available physical adapters.


For the Standby adapter configuration I will select None (all adapters Active) aka active/active configuration.

In Windows Server NIC Teaming, if the Standby Adapter is set to None, it means that all NICs in the team are actively handling traffic, and there are no passive (standby) adapters.

This configuration is often used in Active/Active NIC teaming, where multiple NICs share the load simultaneously rather than having one or more NICs sitting idle as backups.


The highlighted interface is our newly created nic team.


The virtual nic team interface and its NICs are up.


From now on we can see in the server manager that Nic Teaming is enabled.


The virtual nic team interface we can now also see under network connections in the control panel.


We can also see that the IPv4 & IPv6 protocol is enabled on the virtual nic team interface and the IP configuration for the server.


The IP protocols and network configuration was before creating the team directly on the NICs enabled and configured.

Now after the team is created and configured, on these adapters is only the Microsoft Network Adapter Multiplexor Protocol enabled.

The Microsoft Network Adapter Multiplexor Protocol is a Windows networking component that is automatically enabled when you create a NIC Team (Network Interface Card Teaming) in Windows Server or Windows 10/11 (Pro & Enterprise).

It is responsible for binding multiple physical network adapters into a single virtual NIC, allowing load balancing, failover, and increased bandwidth.
